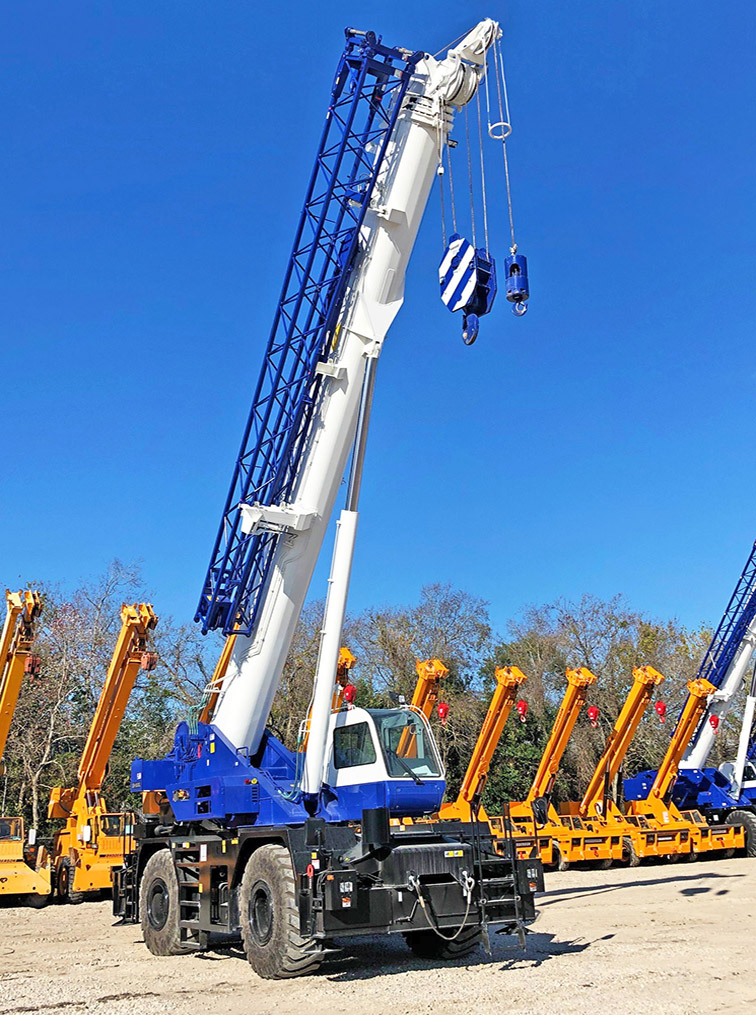

Tadano GR-550XL
| Product Type | Rough Terrain Cranes |
| Manufacturer | Tadano |
| Location | Houston, Texas |
| Model | GR-550XL |
| Year of Manufacture | 2019 |
| Maximum Capacity | 55 tons |
| Maximum Boom Length (ft) | 113' |
| Maximum Tip Height (ft) | 165' |
| Maximum Jib Length (ft) | 50' |
| Overall Length (ft) | 43' 10-3/4" |
| Carrier Length (ft) | 27' 6-3/8" |
| Engine | Cummins QSB6.7 turbo charged after cooled engine |
| Tire or Track | Tire |
| Rated Capacity | 55 tons |
| Maximum Travel Speed (mph) | 31 mph |
| Maximum Gradeability (%) | 69% |
The Tadano GR-550XL is a member of the rough terrain crane family. With a 55 U.S. ton capacity, the GR-550XL comes equipped with a Cummins QSB6.7 turbo charged after cooled engine, 12-month warranty, ECO mode, HELLO-NET and asymmetrical outrigger setup. A standard feature among Tadano rough terrain cranes, HELLO-NET is a telematics system that supports crane management. With the asymmetrical outriggers, it utilizes its AML-C that is able to detect outrigger configuration and calculate maximum lifting capacity.
Jib and Boom
The Tadano GR-550XL features a 113′ boom length and a 50′ jib length.
For additional information or to receive an official Scott-Macon sales or rental quote, contact us today.
Tadano-GR-550XL-Spec-Sheet.pdf
