Tadano Mantis 10010MX
| Product Type | Hydraulic Crawler Cranes |
| Manufacturer | Tadano Mantis |
| Model | 10010MX |
| Year of Manufacture | 2015 |
| Serial Number | 100MX-151 |
| Maximum Capacity | 50 tons |
| Maximum Boom Length (ft) | 111' |
| Maximum Tip Height (ft) | 167' |
| Maximum Jib Length (ft) | 20' |
| Overall Length (ft) | 47'4" |
| Engine | Cummins QSB215 diesel engine |
| Tire or Track | Track |
| Maximum Travel Speed (mph) | 1.29 mph |
| Maximum Gradeability (%) | 57% |
| Overall Width Tracks Extended | 18'4" |
| Overall Width Tracks Retracted | 12' |

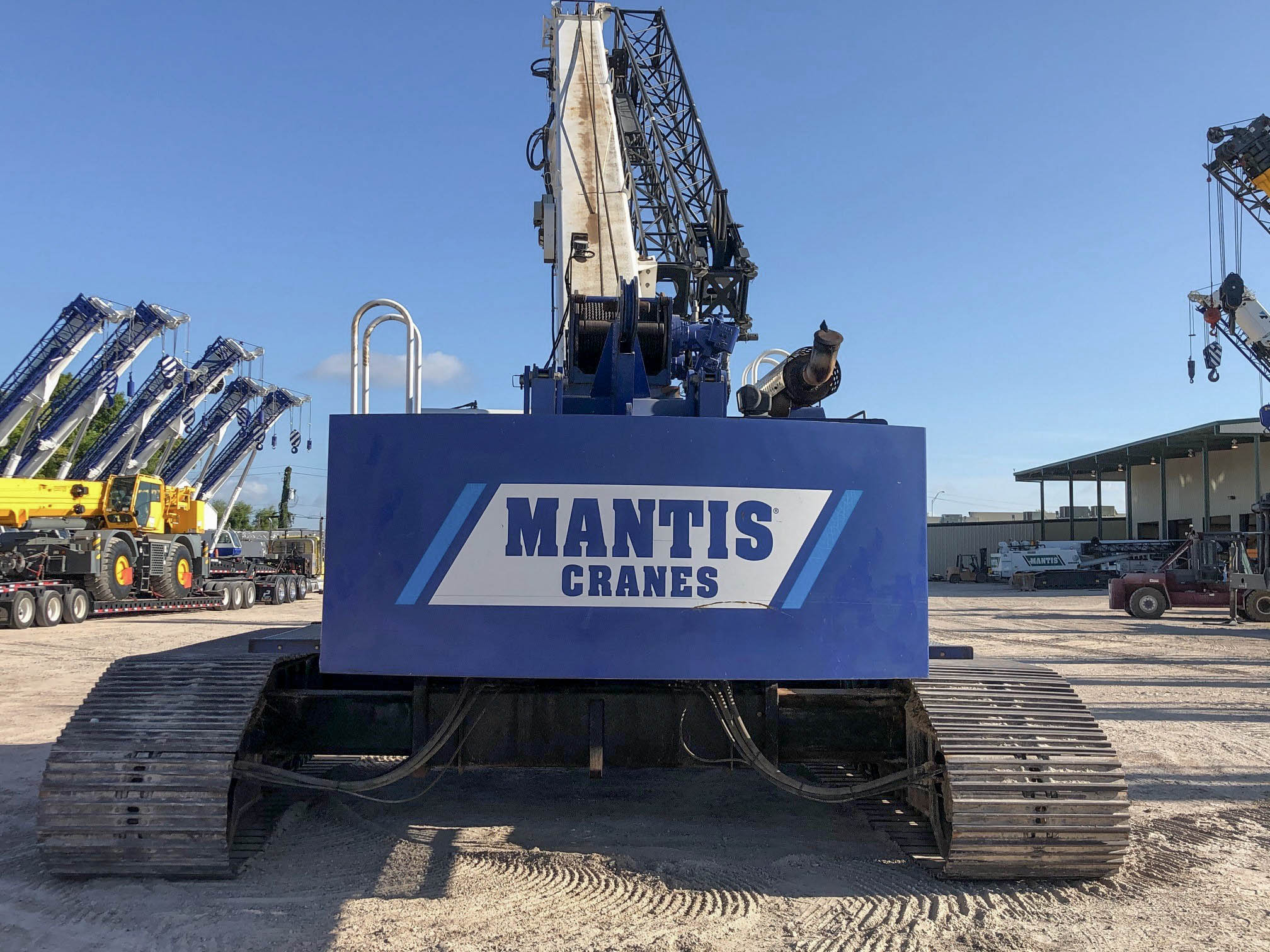

| Counterweight | 20,000 lbs. |
| Gross Vehicle Weight | 103,640 lbs. |

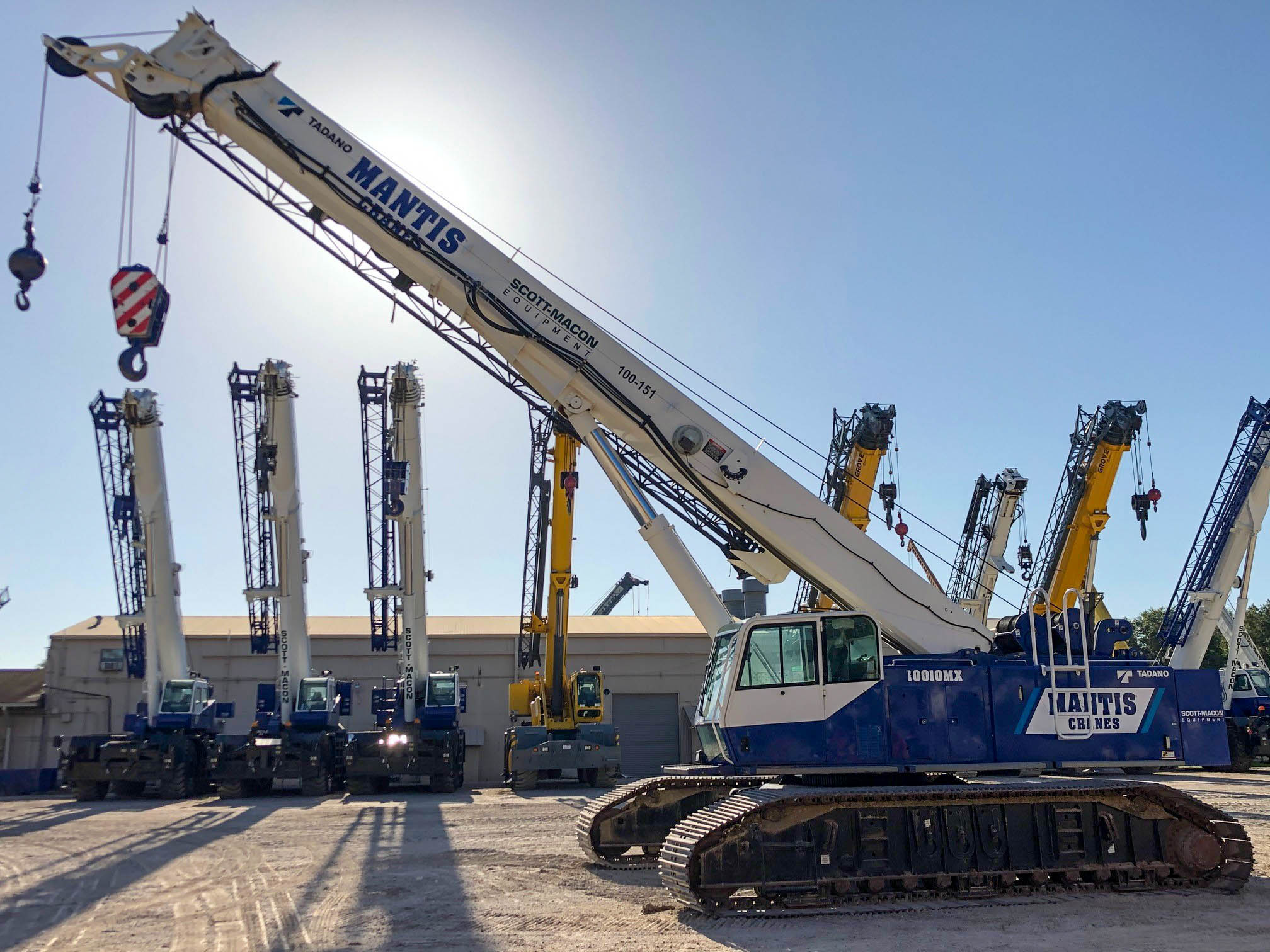

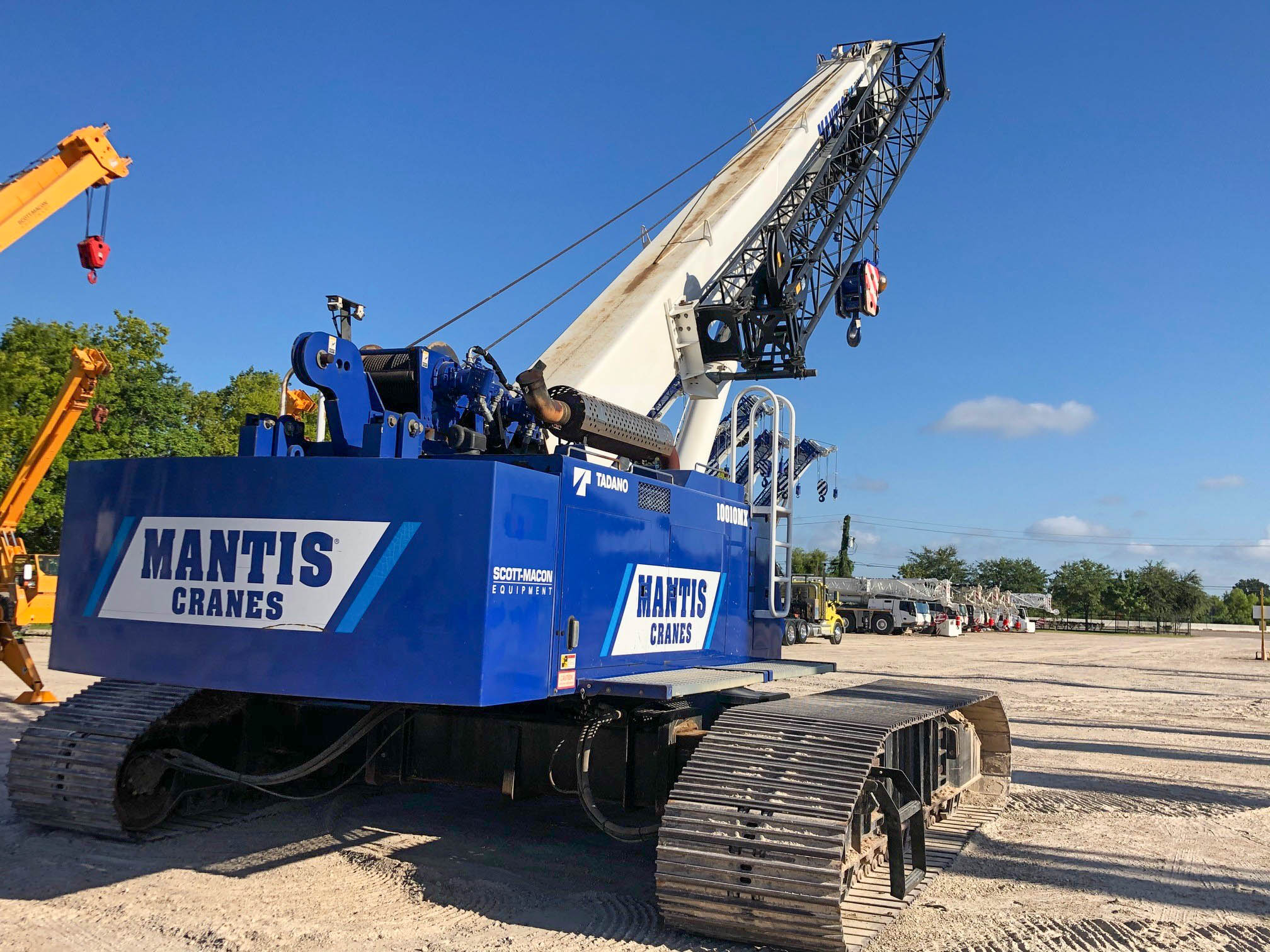

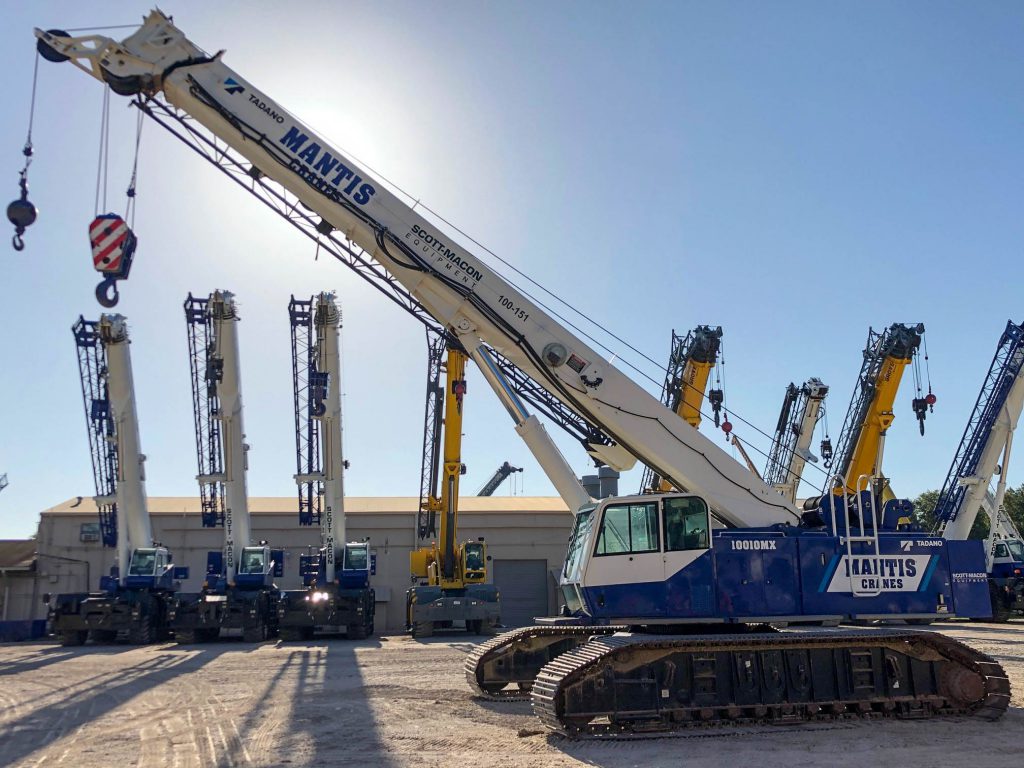

The 10010Mx is a 50 ton teleboom crawler crane with a 111’6″ boom along with a 30′ lattice type swingaway boom extension and a 20′ lattice type boom jib. It has a gross vehicle mass of 103,640 lbs., 57% gradeability, and a 20,000 lb. single piece of removable counterweight. Also included is a Standard Rated Capacity Limiter and Anti-Two Block system with audio and visual warning.
Jib and Boom

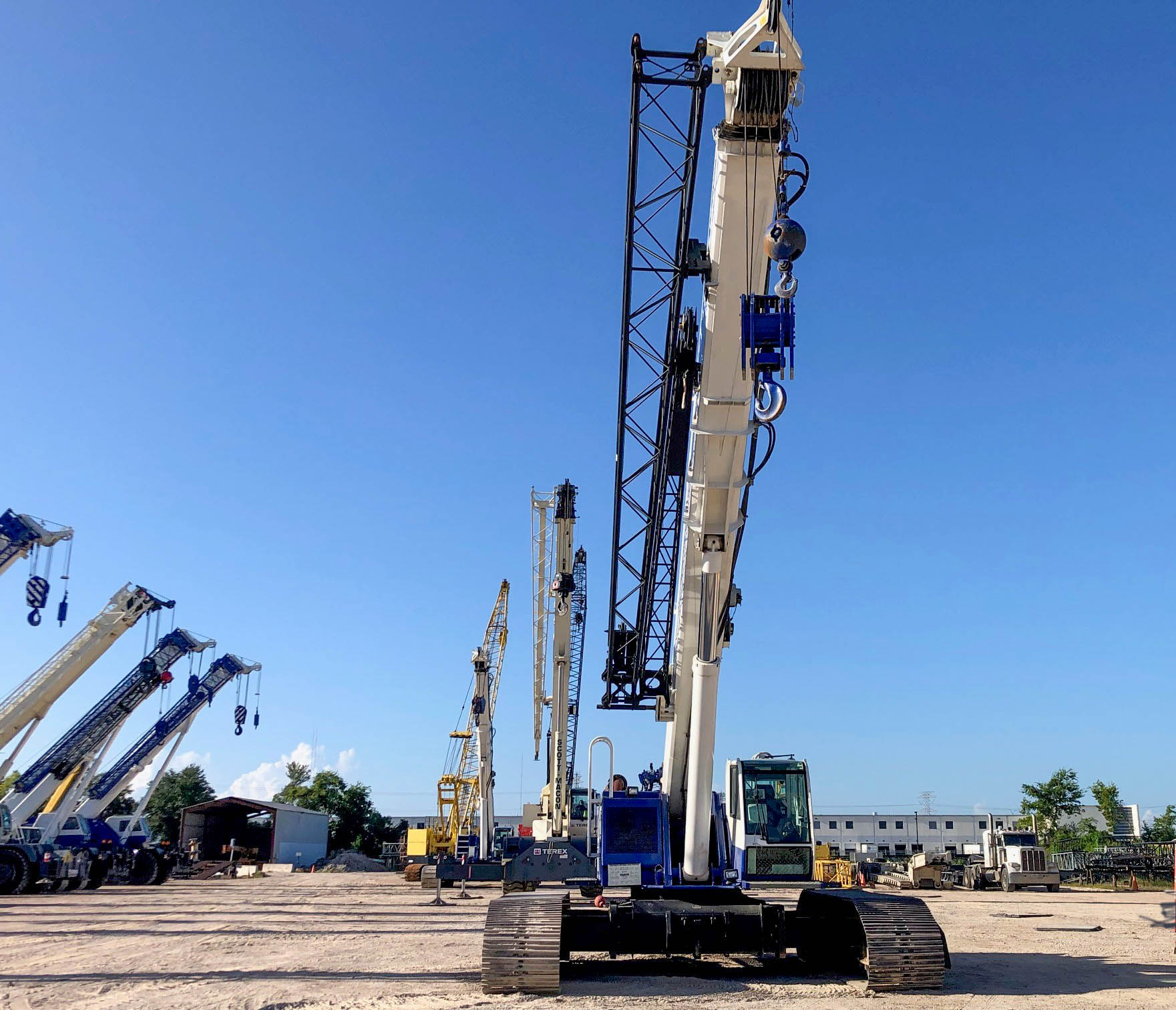

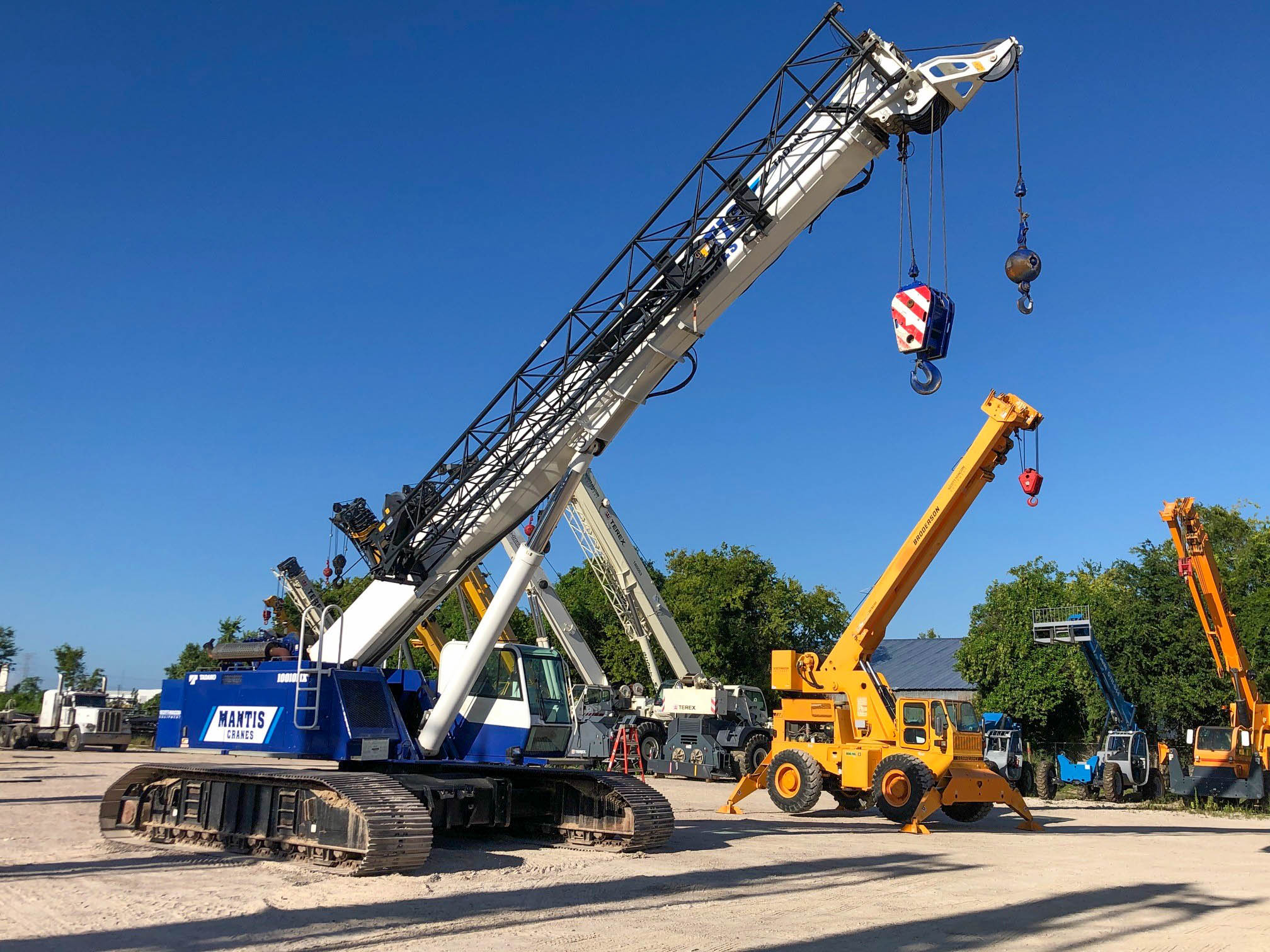

The basic Mantis model 10010Mx crawler crane has a three-section full power boom with a maximum length of 111’6″. This crane also has a 30ﾒ lattice type swingaway boom extension and a 20′ lattice type boom jib.
For additional information or to receive a Scott-Macon Equipment sales or rental quote, contact us today.
